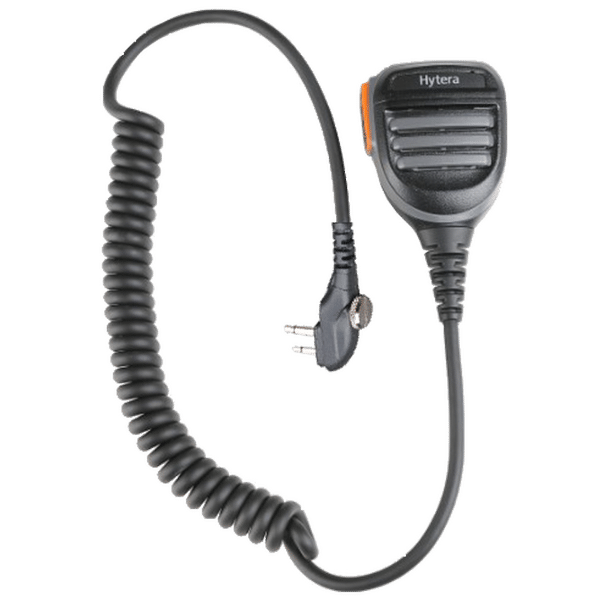

SM26M1 Handheld Radio Speaker Microphone

IP54 Rated Palm Radio Microphone with Speaker

The Hytera SM26M1 is a compact and lightweight remote speaker microphone designed for clear, convenient communication with compatible Hytera portable radios. Built to bring the speaker and microphone closer to the user, it improves audio clarity in noisy settings while allowing hands-free operation by keeping the radio secured to a belt or vest.

Equipped with a high/low volume control switch and an integrated Push-to-Talk (PTT) button, the SM26M1 enables quick call initiation and on-the-fly volume adjustments without reaching for the radio. Its IP54-rated housing provides protection against dust and water splashes, ensuring durability in daily field use. The microphone connects to the radio via a secure dual-Pin audio connector with a thumb screw, helping to prevent accidental disconnection during active use. A 2.5 mm audio jack allows connection to an external earpiece such as the Hytera EAS03 (sold separately), offering the option for discreet listening in loud or sensitive environments. With its ergonomic design, built-in audio control, and rugged reliability, the Hytera SM26M1 is a practical and effective accessory for professionals needing dependable communication on the move. Features a coiled cable with a 10-Pin aviation connector and a metal dash-mount clip.

Technical Specifications

Dimensions 3” x 2.4” x 1.3”
Weight 5.6 oz
Cord Length 5’, fully extended
Color Black
PTT Key Yes
Audio Accessory Connector 2.5 mm Audio Jack Socket
Radio Accessory Connector Dual-Pin
Microphone Sensitivity –42±3 dB @ 1 kHz 3.0 V 2.2 K 0 dB = 1 V/Pa
Speaker Power 2W (rated) 3W (max.)
Speaker Impedance 20 Ω±15% @ 1 kHz
Speaker Frequency Response 97±3 dB @ 1 kHz at 2 W/30 cm
IP Rating IP54
Operating Temperature -22ºF to 140ºF
Storage Temperature -40ºF to 185ºF
